294 Williams Road Toorak Scaffolding

Executive Summary

Alltrade Scaffolding delivered a Stage 2 scaffold installation for a premium residential project at 294 Williams Road, Toorak, supporting ongoing roofing and cladding works. The project required carefully engineered scaffold extensions to provide safe access across upper levels while integrating seamlessly with the existing structure. Using a K-Stage modular system, our team installed multi-platform scaffold sections with roof rails, hop-ups, and ladder access to accommodate varying working heights up to approximately 9.5 metres. The result was a stable, compliant, and efficient access solution aligned with AS/NZS 1576 and WHS regulations.

Situation

As construction progressed into Stage 2, the builder required additional scaffold coverage to support roof works and upper façade installation. The property’s design included multiple levels, basement integration, and varied elevation points, requiring a scaffold system that could adapt to both ground-level and elevated deck heights. The scaffold needed to connect with existing installations while providing continuous access for trades working across the roofline and upper façade zones.

Challenge

• Extending scaffold from basement level (~9.5m deck height) to upper working platforms
• Managing multiple elevation zones, including first floor slab (3.4m) and upper façade sections
• Designing safe and stable access across long linear spans
• Integrating scaffold with existing structures without requiring dismantling
• Providing compliant roof edge protection systems
• Ensuring efficient movement for trades using ladder and stair access points

Solution

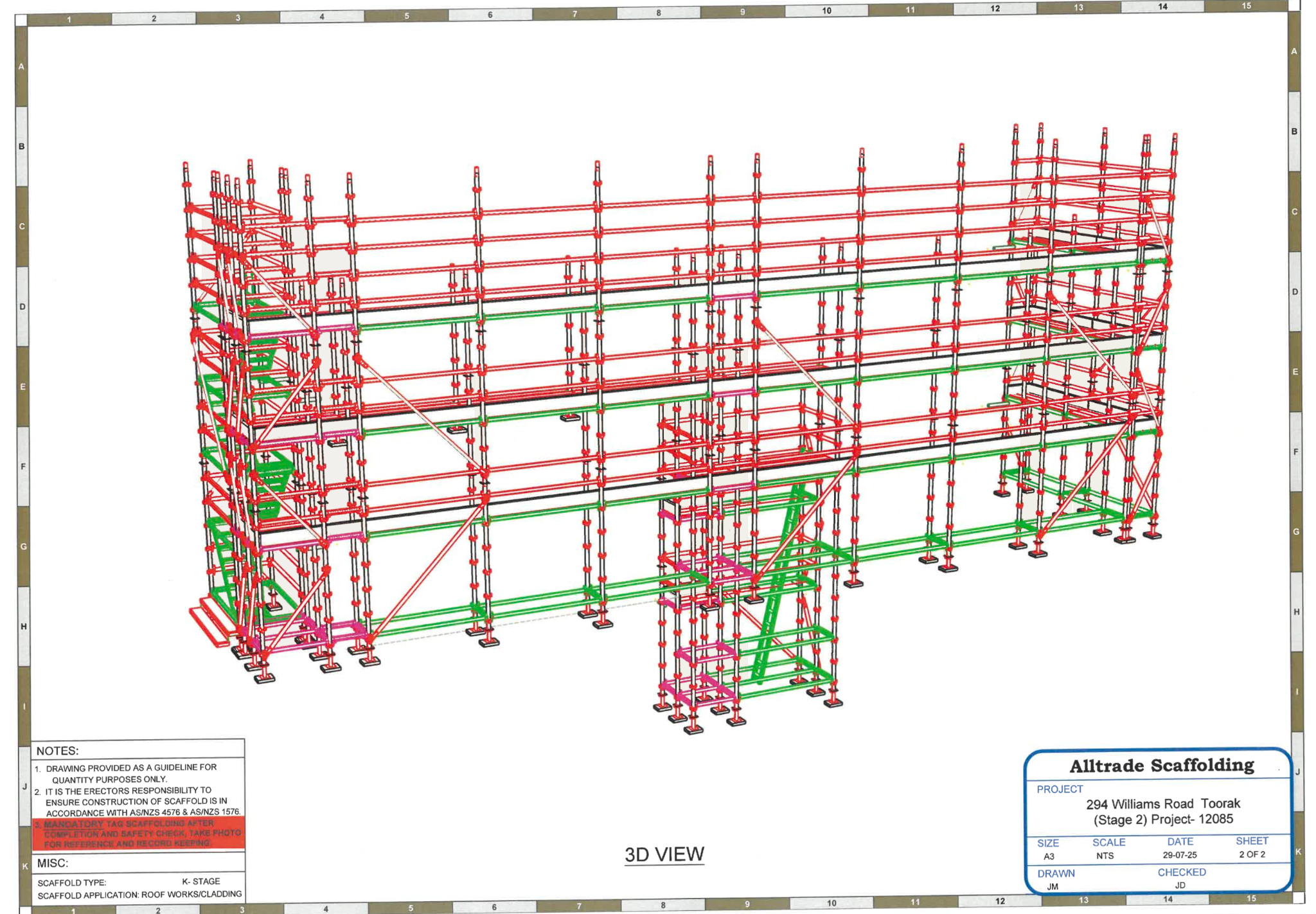

Alltrade Scaffolding implemented a custom Stage 2 scaffold configuration using K-Stage modular components, designed specifically for height variation and workflow efficiency.

Key features included:

• 2 and 3 platform levels across different elevation zones
• Platform widths of 700mm for streamlined façade access
• Working heights aligned with:

  • Basement/deck level (~9.5m)
  • Upper façade zones (~7.5m)
• Top 1m down roof rail systems with 4-pin configuration for fall protection
• 1-board hop-ups for extended reach in cladding zones
• Configured 3 + 2m in / 3 + 3 + 3m out bay layouts for safe access and circulation
• 2.4m x 0.7m ladder access points strategically positioned
• 2.4m x 1.2m stair tower to improve vertical mobility and safety
• Clip-off points and reinforced connections to integrate with existing scaffold sections

All works were carried out by licensed scaffolders, with full compliance checks and sign-off prior to use.

Results

• Delivered a fully integrated Stage 2 scaffold system without disruption to existing works
• Enabled safe and efficient access for roofing and cladding trades
• Maintained structural stability across multiple height transitions
• Improved vertical access with dedicated ladder and stair systems
• Achieved full compliance with AS/NZS 1576 & WHS regulations
• Completed installation on schedule with zero safety incidents

Why This Approach Worked

This project was successful due to a staged and modular scaffold strategy. By aligning platform levels with key structural heights, Alltrade ensured that trades had consistent and safe access without requiring constant scaffold adjustments. The use of roof rails, hop-ups, and stair access systems enhanced both safety and productivity, while integration with the existing scaffold avoided costly delays. The flexibility of the K-Stage system allowed for precise adaptation to the site’s architectural complexity.
