56 High Street Frankston Scaffolding

Executive Summary

Alltrade Scaffolding delivered a comprehensive multi-level scaffold solution for a residential construction project at 56 High Street, Frankston. The project required safe and reliable access around the entire perimeter of the structure to support roofing, cladding, and external finishing trades working at varying heights.

Using a K-Stage modular scaffold system, our team installed multiple platform levels with integrated hop-ups, roof rails, and ladder access points to accommodate working heights ranging from approximately 6.0m to 8.0m. The scaffold was designed to maximise worker safety and efficiency while ensuring full compliance with AS/NZS 1576 and WHS regulations.

Situation

The Frankston project involved a large residential build with multiple façade elevations and roof sections requiring staged external access. As the project progressed into roofing and cladding phases, the builder required a scaffold system capable of providing stable work platforms and safe circulation around the building perimeter.

The scaffold also needed to support multiple trades simultaneously while adapting to varying wall heights and roofline transitions across the structure.

Challenge

• Managing varying scaffold heights between 6.0m and 8.0m across the project perimeter
• Providing safe and consistent access for roofing and façade installation trades
• Designing around multiple elevations and external wall transitions
• Integrating compliant roof edge protection systems
• Maintaining efficient worker movement with strategically positioned ladder access points
• Ensuring scaffold stability while incorporating hop-up platforms for extended reach

Solution

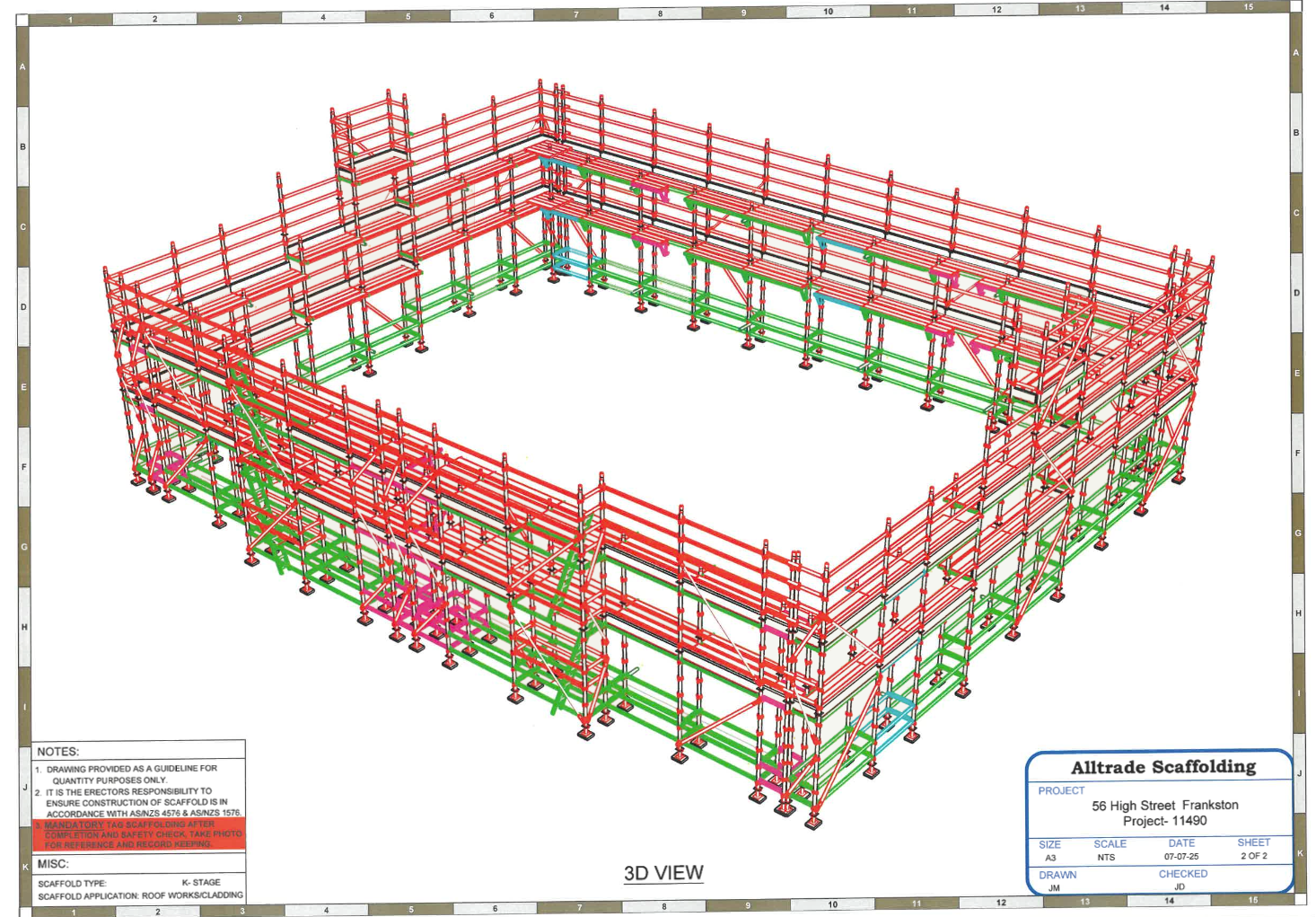

Alltrade Scaffolding designed and installed a tailored K-Stage scaffold system to suit the building layout and construction requirements.

The installation included:

• 2 and 3 working platform levels positioned around the perimeter
• Platform widths of 700mm for streamlined façade and roof access
• 1 and 2-board hop-up platforms to improve reach and working efficiency
• Top 1m down roof rail systems with 4-pin configuration for compliant fall protection
• Configured 3 + 2m in / 3 + 2 + 2m out bay layouts for safe worker circulation
• Multiple 2.4m x 0.7m ladder access points for efficient vertical movement
• Scaffold sections aligned with roof transitions and façade zones for uninterrupted trade access

All scaffold components were installed by licensed scaffolders, with inspections and compliance sign-offs completed before handover.

Results

• Delivered a safe and fully compliant perimeter scaffold system
• Supported efficient roofing, cladding, and façade installation works
• Improved site safety with integrated roof rails and stable work platforms
• Enabled multiple trades to work simultaneously without disruption
• Achieved full compliance with AS/NZS 1576 & WHS regulations
• Completed installation on schedule with zero safety incidents

Why This Approach Worked

The success of this project came from combining modular scaffold flexibility with strategic access planning. By tailoring platform heights and hop-up configurations to each elevation, Alltrade ensured all trades had practical and safe working access throughout the construction phase.

The integration of roof edge protection systems and multiple ladder access points improved worker mobility and reduced delays between work zones. Using the K-Stage system also allowed the scaffold to adapt efficiently to the varying roof heights and façade requirements without requiring redesign during installation.

Reliable Scaffold Solutions for Residential Builds

Alltrade Scaffolding provides safe, compliant, and efficient scaffold systems for residential construction projects across Melbourne and Victoria. The 56 High Street, Frankston project highlights our capability to deliver adaptable access solutions for complex roofing and façade works.

Explore our residential scaffolding services or learn more about our Kwikstage scaffolding systems for multi-level construction projects. Contact us today to arrange a consultation or request a tailored scaffold solution.

‍
