67 Mayston Street Hawthorn East

Executive Summary

Alltrade Scaffolding delivered a comprehensive multi-level scaffold system for a residential construction project at 67 Mayston Street, Hawthorn East. The project required full perimeter access, safe roof work zones, and adaptable platform configurations to suit varying building heights and architectural features.

Using a K-Stage modular scaffold system, our team installed multiple platform levels with integrated hop-ups, roof rails, and ladder access points. The scaffold was engineered to support trades working at heights up to approximately 9.2 metres, while maintaining strict compliance with AS/NZS 1576 and WHS regulations.

Situation

The Hawthorn East project involved a large residential build with multiple elevations, recessed sections, and varying roof heights. As construction progressed into roofing and external finishing stages, the builder required a complete scaffold solution that would provide consistent and safe access across all façades.

The scaffold also needed to support painting and finishing trades, requiring stable platforms, extended reach through hop-ups, and reliable fall protection at roof level. With power lines present near the site boundary, additional care was required in scaffold placement and design.

Challenge

• Managing varying height zones (up to ~9.2m) across different sides of the building
• Designing around architectural features including recesses and stepped façades
• Providing safe access near a live power line, requiring careful clearance and planning
• Ensuring continuous working platforms for multiple trades (roofers, painters, façade installers)
• Incorporating roof edge protection systems for safe work at height
• Maintaining efficient access with both ladder bays and internal circulation points

Solution

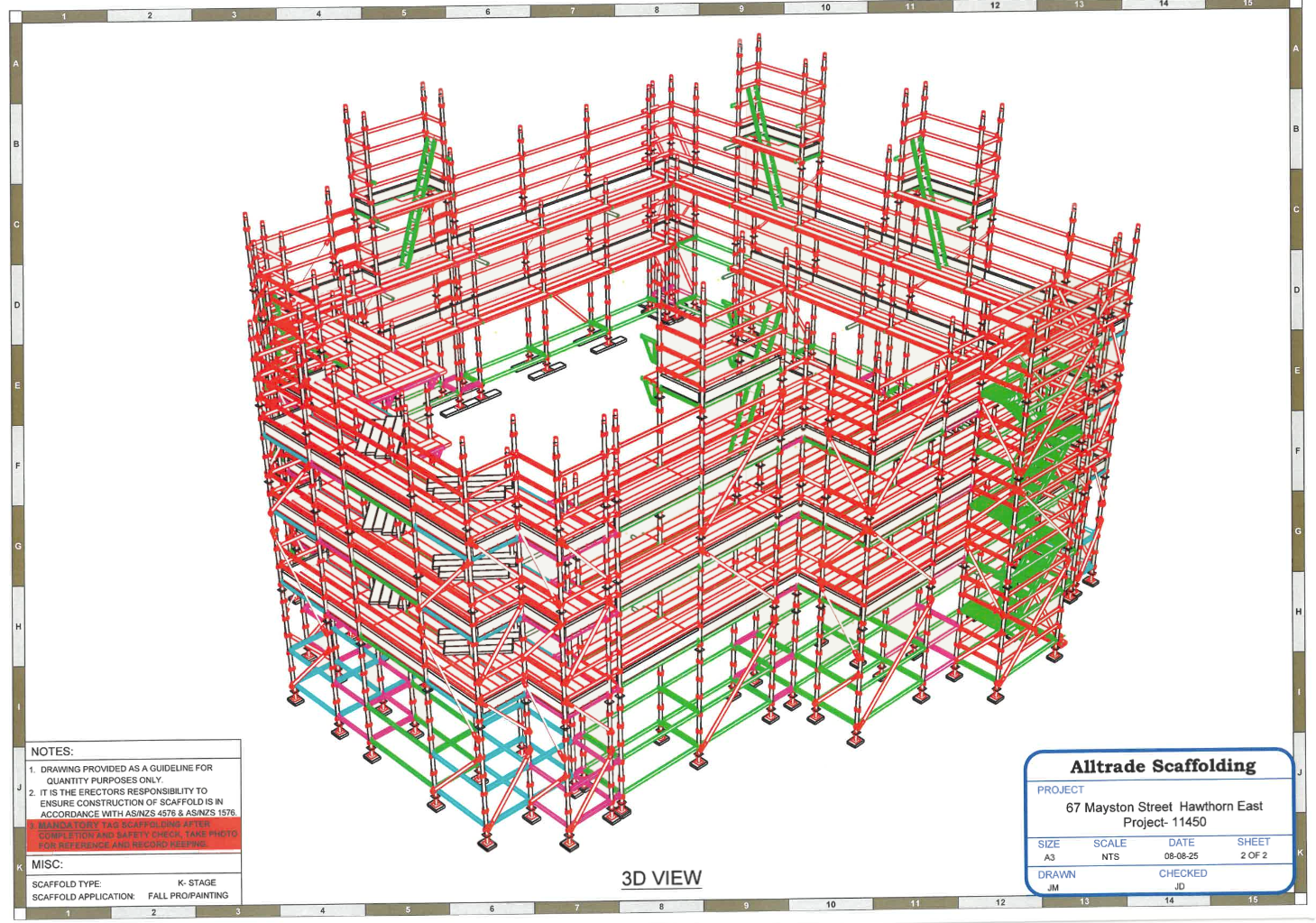

Alltrade Scaffolding designed a fully integrated K-Stage scaffold system tailored to the building’s layout and construction sequence.

Key features of the solution included:

• 1 to 4 working platform levels depending on elevation requirements
• Platform widths of 700mm and 1.2m to suit different work zones
• Top 1m down roof rail systems with 4-pin configuration for compliant edge protection
• 1 and 2-board hop-ups to extend reach for façade and painting works
• Configured 3 + 2m in / 3 + 3 + 2m out bay arrangements for safe access and movement
• 2.4m x 0.7m ladder access points positioned strategically across the scaffold
• Scaffold sections installed on roof areas using lap boards under swivel jacks where required
• Careful positioning and compliance measures implemented near the adjacent power line

All installations were completed by our licensed team, with full inspection and compliance sign-off prior to use.

Results

• Delivered a fully compliant perimeter scaffold system tailored to a complex residential design
• Enabled safe and efficient access for roofing, painting, and façade trades
• Maintained safe working conditions near power lines with no incidents
• Provided stable and continuous work platforms across all elevations
• Achieved full compliance with AS/NZS 1576 & WHS regulations
• Completed installation on schedule with no disruption to project timelines

Why This Approach Worked

This project succeeded due to a combination of modular flexibility and detailed planning. By adapting platform heights and configurations to each section of the building, Alltrade ensured all trades had the access they needed without compromise.

The integration of roof rail systems and hop-ups allowed safe and efficient work at upper levels, while ladder access points improved movement across the scaffold. Careful management around the power line ensured compliance without impacting productivity. Overall, the project demonstrates Alltrade’s ability to deliver safe, adaptable scaffold systems for high-end residential builds with complex site conditions.
