88 Junction Road, Blackburn North

Executive Summary

Alltrade Scaffolding was engaged to deliver a comprehensive Stage 3 scaffold installation at 88 Junction Road, Blackburn North, supporting ongoing construction works across multiple elevations of the building. The project required a fully integrated perimeter scaffold system with varied platform widths, roof rails, hop-ups, and internal stair access to accommodate different height zones across the structure. Using a modular K-Stage system, our team engineered and installed a multi-platform configuration ranging from 7.0m to 10.0m working heights. The scaffold was designed for structural stability, safe access, and efficient trade movement, all in full compliance with AS/NZS 1576 and WHS regulations.

Situation

The Blackburn North project had progressed into Stage 3 construction, requiring extended scaffold coverage around multiple façades. The structure featured varying wall heights, stepped sections, and internal access requirements that demanded careful planning and platform staging.

With multiple trades scheduled to work simultaneously, including roofing, façade installation, and finishing works, the scaffold system needed to support safe vertical movement, consistent platform access, and uninterrupted workflow around the building perimeter.

Challenge

• Accommodating varying height zones (7.0m and 10.0m) across different building sections.
• Designing scaffold layouts around stepped elevations and internal recesses.
• Integrating a stair tower system (2.4m x 1.2m) for safe multi-level access.
• Maintaining structural stability across long linear spans with multiple in/out bays.
• Providing roof-level handrail protection and compliant hop-up access for upper trades.
• Coordinating installation while existing scaffold sections remained active on-site.

Solution

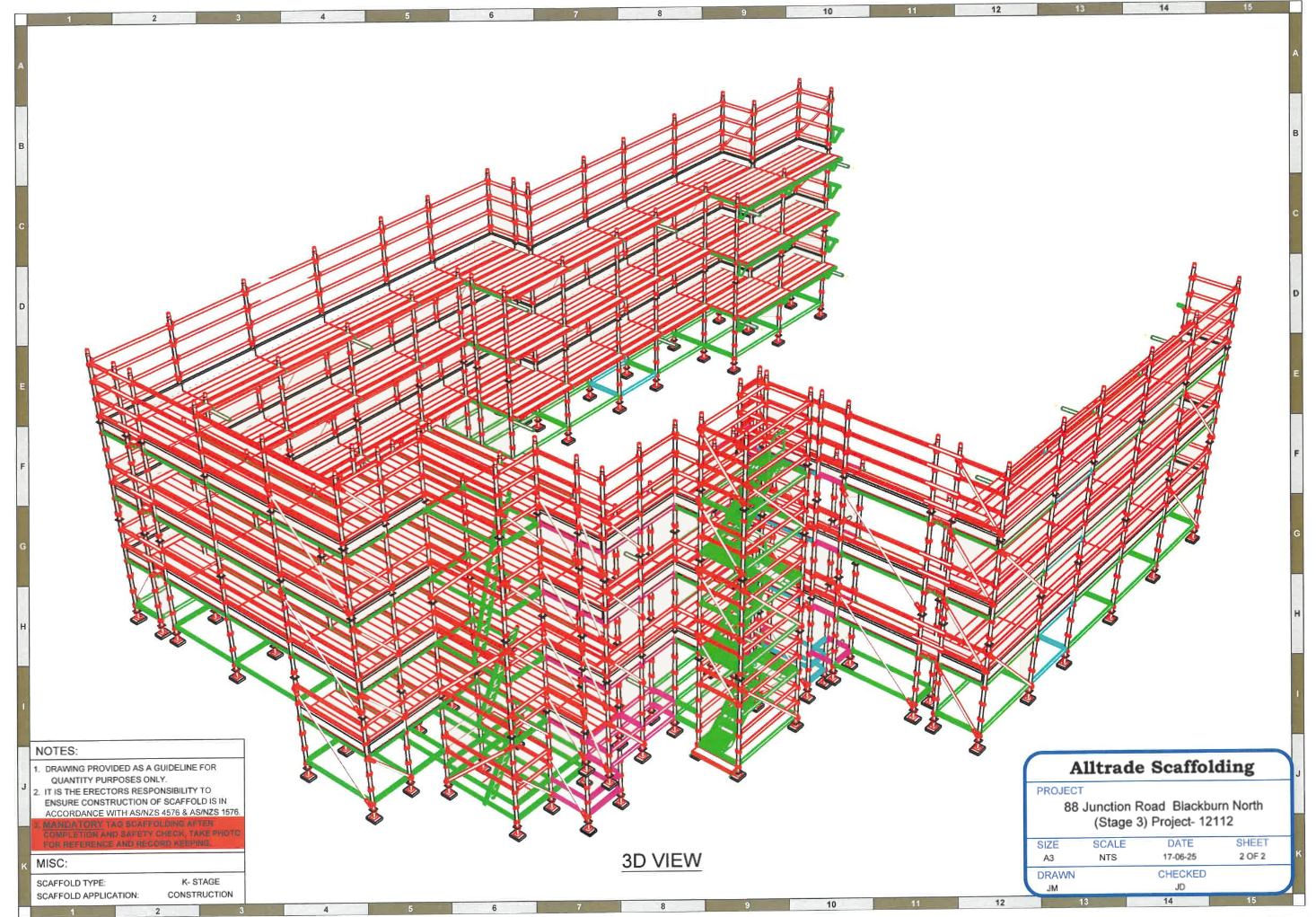

Alltrade Scaffolding designed and delivered a fully staged K-Stage modular scaffold system, tailored to the geometry of the building and construction sequencing.

The installation included:

• 3 and 4 working platform levels depending on façade height
• Platform widths of 1.2m, 1.0m, and 700mm to suit work zones
• Top 1m down roof rail systems with 4-pin configuration for edge protection
• Multiple 1 and 2-board hop-ups to extend working reach
• Configured 3 + 3m in / 3 + 3 + 2m out bay layouts for optimal circulation
• 2.4m x 1.2m stair tower system to ensure safe and efficient vertical access
• Integrated connections to existing scaffold sections without requiring dismantle or redesign

Each section was installed by our licensed team, with staged safety inspections completed prior to handover.

Results

• Delivered full perimeter scaffold coverage across complex building geometry
• Enabled roofing and façade trades to operate safely at heights up to 10m
• Improved vertical mobility with dedicated stair tower access
• Maintained seamless coordination with existing scaffold zones
• Achieved full compliance with AS/NZS 1576 & AS/NZS 4576
• Zero safety incidents during installation and operational phases

Why This Approach Worked

The success of this project came down to modular flexibility and forward planning. By using consistent K-Stage bay configurations and height-specific platform staging, Alltrade was able to adapt to stepped elevations without structural compromise.

The inclusion of a dedicated stair tower significantly improved worker movement between levels, reducing reliance on ladders and improving site safety. Roof rail integration and hop-up configurations ensured upper-level trades had secure, ergonomic working zones without the need for later scaffold modifications. This project demonstrates Alltrade’s capability to deliver multi-level, high-complexity scaffold systems that integrate smoothly into staged construction environments.

Engineered Access for Complex Builds

From large-scale residential developments to multi-stage commercial projects, Alltrade Scaffolding delivers access systems built for safety, compliance, and efficiency. The 88 Junction Road, Blackburn North project highlights our ability to design and execute multi-platform scaffold systems with precision and reliability.

Learn more about our commercial scaffolding services or explore our Kwikstage scaffold systems for complex staged builds. Contact us to arrange a consultation or request a detailed scaffold proposal for your next project.

‍
